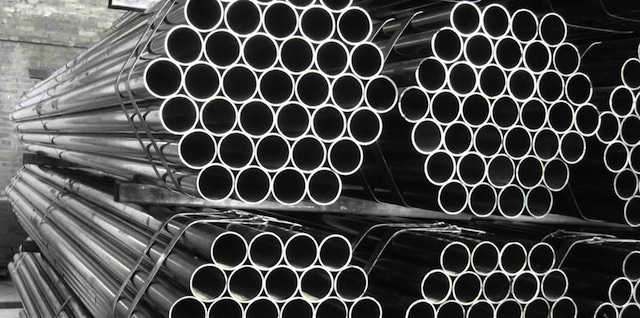

MS ERW Pipes
MS ERW PIPES / BLACK PIPES are formed from low – carbon mild steel on Automatic Tube mill by high Frequency Induction Welding process.
Transmission of water
Outside diameter : from 9.85 mm (1/8″) to 115 mm (4″) Wall thickness : 1.8 mm to 5.4 mm Length : 3 to 6 meters
Plain, Screwed and Socketed
Black (Self – colored), outside mill protective coating
IS – 1239 (Part – 1) : 1990 , equivalent BS – 1387, ATSM A53 Grade A, and/or IS – 10577:1982
Bare Bundles
Mill’s certificate or inspection by an independent organization, as authorized by the customer.
Chemical test, Mechanical test, Hydrostatic test, Other as required by the standards
| NOMINAL BORE(NB) | Class | Outside | Diameter | Thickness | SWG | |
| mm | inches | – | mm | mm | mm | – |
| 6 | (1/8″) | L | 9.85 | 9.65 | 1.8 | 15 |
| M | 9.85 | 9.65 | 2.25 | 13 | ||
| 8 | (1/4″) | L | 13.35 | 13.1 | 1.8 | 15 |
| M | 13.6 | 13.1 | 2.28 | 13 | ||
| H | 13.6 | 13.1 | 2.9 | 11 | ||
| 10 | (3/8″) | L | 16.85 | 16.6 | 1.8 | 15 |
| M | 17.1 | 16.6 | 2.25 | 13 | ||
| H | 17.1 | 16.6 | 2.9 | 11 | ||
| 15 | (1/2″) | L | 21.4 | 21 | 2 | 14 |
| M | 21.8 | 21 | 2.6 | 12 | ||
| H | 21.8 | 21 | 3.2 | 10 | ||
| 20 | (3/4″) | L | 26.9 | 26.4 | 2.3 | 13 |
| M | 27.3 | 26.5 | 2.6 | 12 | ||
| H | 27.3 | 26.5 | 3.2 | 10 | ||
| 25 | (1″) | L | 33.8 | 33.2 | 2.6 | 12 |
| M | 34.2 | 33.3 | 3.2 | 10 | ||
| H | 34.2 | 33.3 | 4 | 8 | ||
| 32 | (11/4″) | L | 42.5 | 41.9 | 2.6 | 12 |
| M | 42.9 | 42 | 3.2 | 10 | ||
| H | 42.9 | 42 | 4 | 8 | ||
| 40 | (11/2″) | L | 48.4 | 47.8 | 2.9 | 11 |
| M | 48.8 | 47.9 | 3.2 | 10 | ||
| H | 48.8 | 47.9 | 4 | 8 | ||
| 50 | (2″) | L | 60.2 | 59.6 | 2.9 | 11 |
| M | 60.8 | 59.7 | 3.6 | 9 | ||
| H | 60.8 | 59.7 | 4.5 | 7 | ||
| 65 | (21/2″) | L | 76 | 75.2 | 3.2 | 10 |
| M | 76.6 | 75.3 | 3.6 | 9 | ||
| H | 76.6 | 75.3 | 4.5 | 7 | ||
| 80 | (3″) | L | 88.7 | 87.9 | 3.2 | 10 |
| M | 89.5 | 88 | 4 | 8 | ||
| H | 89.5 | 88 | 4.8 | 6 | ||
| 100 | (4″) | L | 113.9 | 113 | 3.6 | 9 |
| M | 115 | 113.1 | 4.5 | 7 | ||
| H | 115 | 113.1 | 5.4 | 5 | ||
Thickness: light: + Not limited – 8%
Medium & Heavy: + Not Limited – 10%
Length: light – medium – Heavy tubes : Random length of 3.0 to 6.0 mtrs or as specified
